SL35002超靜音管狀電機-遙控內置

適合安裝在對環境有簡潔要求，不允許接收器外露的場所。應用電動卷簾、百褶簾、蜂巢簾、電動屏幕、百葉簾等產品，
高精度機械式行程限位，可外接手動開關并兼容所有SOLA控制系統

Suitable to install in the environment which is clean, not allow exposed receiver. Apply to electric rolling shutter,
pleated Blinds, honeycomb curtain, electric screen, Venetian blinds and other products,High-precise mechanical
route limit, can be connected with the manual switch and compatible with all SOLA control system

功能特點：
· 電子限位，內置接收器
· 國際領先的靜音專利技術，斜字齒超靜音結構設計，實現靜音運行，噪音值低至35dB
· 無線接收器為密封盒式結構，內置于電機中，安裝方便性能更可靠
· 精準的電子限位結構，重復定位精度可達±1°
· 采用抗沖擊電流繼電器
· 工業級標準CPU，工作溫度-40°~+85°
· 元器件采用精密SMT工藝，表面防潮處理
· 與所有SOLA控制系統兼容

Functional features:
· Electronic limit position, inserted receiver
· International lead quite patent technology, Herringbone gear ultra quiet structure design Quite operation, noise level lowest to 35dB
· The wireless receiver is Sealed box structure, inserted to motor simple installation, reliable performance
· Precise electronic limit structure, repeated positioning precision can be up to + / - 1 °
· Adopts anti-impact current relay
· Industrial standard CPU, working temperature - 40°～ + 85°
· Components using a precision SMT process, surface through moisture treatment
· Is compatible with all SOLA control system

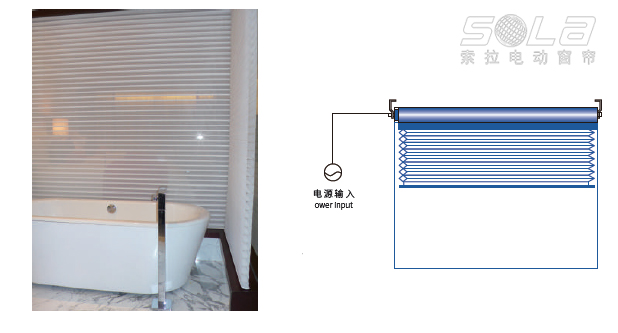

應用方式 Application mode
1. 安裝簡易：采用sola靜音電機驅動，內置接收器安裝簡潔，系統性能穩定可靠；
2. 噪音低：超靜音電機運行不產生環境噪音，蜂巢簾蜂巢小孔有很好的隔音作用，打造室內安靜舒適環境；
3. 遮光性好：蜂巢簾電機系統根據窗簾面料透紗、半遮光、全遮光等方式自動調節；
4. 系統節能：簾布通過隔熱設計，根據光照強度調節實現高效節能；
5. 恒速同步運行：恒定速度運行，多臺電機同時運行步調一致。
1. Simple installation: sola mute motor is used to drive, and the built-in receiver is simple to install, and the system performance is stable and reliable;
2. Low noise: the ultra-quiet motor does not generate environmental noise when running. The honeycomb hole in the honeycomb curtain has a good sound insulation effect to create a quiet and comfortable indoor environment.
3. Good shading: the honeycomb curtain motor system automatically adjusts according to the transparent yarn, semi-shading and full shading of the curtain fabric.
4. System energy saving: the curtain cloth can achieve high efficiency and energy saving through thermal insulation design and adjustment according to light intensity;
5. Constant speed synchronous operation: with constant speed, multiple motors are running at the same pace.

---

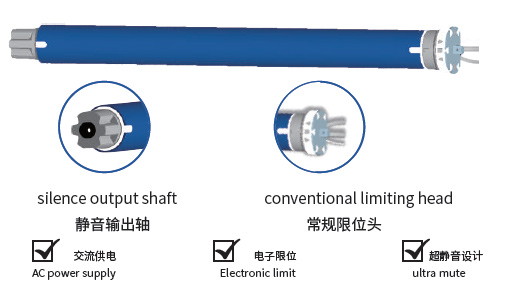

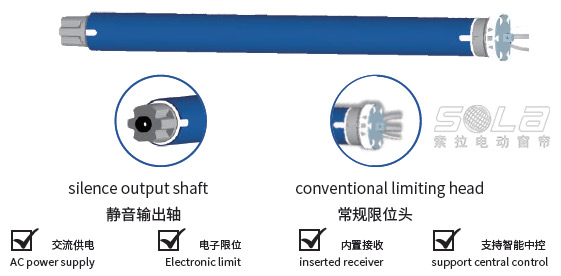

Sl35002超靜音管狀電機 super silence tubular motor

SOLA超靜音管狀電機是卷簾裝飾靚化、遮陽、隔熱降噪調節等系統控制最完善的解決方案，多種不同規格的管狀
電機可供選用，以適用所有用途的需要。主要應用于卷簾、百褶簾、蜂巢簾、電動銀幕、落地窗、幕墻等產品；
也可應用在中、小型的鋁、木百葉簾產品，安裝方便，布線簡潔，高效節能；SOLA控制系統外兼容KNX、酒店客
控RCU、RS485、EIB、WIFI等。

SOLA super silent tubular motor is the most perfect solution for the system control of curtain decoration, sun shading, heat insulation and noise reduction regulation, with a variety of tubular shapes in different specifications The motor is available for all applications. Mainly used in rolling curtain, pleated curtain, honeycomb curtain, electric screen, floor window, curtain wall and other products;Also can be applied in medium, small aluminum, wood shutter products, easy to install, simple wiring, efficient energy saving; SOLA control system is compatible with KNX and hotel guestsControl RCU, RS485, EIB, WIFI, etc.

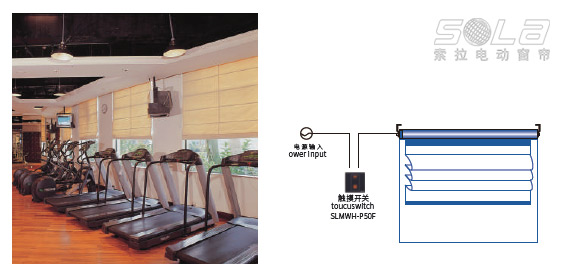

應用方式 Application mode
1.采用sola靜音管狀電機驅動，升降平穩，調光角度精準；
2.電機尺寸短小，與安裝盒配合設計完美；
3.雙重絕緣防護，無需另接地線，安全且便于安裝；
4.百葉簾時尚的外觀設計，適用不同的室內風格；
5.電機控制性能穩定可靠，可實現無線控制，有線控制及集成控制；
6.自動翻轉功能精準的調節室內的自然光程度，調節采光量。
1. Sola mute tubular motor is used to drive, with stable rise and fall and accurate light adjusting Angle;
2. Short size of motor, perfect design with mounting box;
3. Double insulation protection, no additional grounding line, safe and easy to install;
4. Fashion design of blinds, applicable to different interior styles;
5. Motor control performance is stable and reliable, which can realize wireless control, wired control and integrated control;
6. The automatic turning function accurately adjusts the indoor natural light level and the amount of daylighting.

---

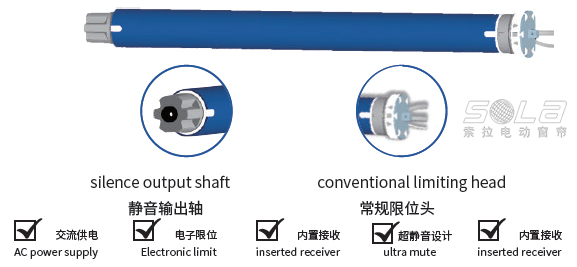

SL35002靜音管狀電機-遙控內置 silent tubular motor-inserted remote control

適合安裝在對環境有簡潔要求，不允許接收器外露的場所。應用電動卷簾、百褶簾、蜂巢簾、電動屏幕、百葉簾等產品，高精度電子行程限位，可外接手動開關并兼容所有SOLA控制系統。

Suitable to install in the environment which is clean, not allow exposed receiver. Apply to electric rolling shutter, pleated Blinds, honeycomb curtain, electric screen, Venetian blinds and other products,High-precise mechanical route limit, can be connected with the manual switch and compatible with all SOLA control system。

功能特點：
· 電子限位，內置接收器
· 無線接收器為密封盒式結構，內置于電機中，
· 安裝方便性能更可靠
· 精準的電子限位結構，重復定位精度可達±1°
· 采用抗沖擊電流繼電器
· 工業級標準CPU，工作溫度-40°~+85°
· 元器件采用精密SMT工藝，表面防潮處理
· 與所有SOLA控制系統兼容

Functional features:
· Electronic limit position, inserted receiver
· The wireless receiver is Sealed box structure, inserted to motor
· simple installation, reliable performance
· Precise electronic limit structure, repeated positioning precision can be up to + / - 1 °
· Adopts anti-impact current relay
· Industrial standard CPU, working temperature - 40°～ + 85°
· Components using a precision SMT process, surface through moisture treatment
· Is compatible with all SOLA control system

應用方式 Application mode
1.一般采用sola 35、45管徑管狀電機作為驅動力,根據建筑窗戶高度不
同，采用不同管徑的電動卷簾，配各種類型面料以達不同的遮陽效果；
2.系統可做成一托二（水平直線）、一托二（90度-180度轉角）；
3.控制方式可用無線遙控，手動開關控制，智能家居中控等；
4.整體簾布使用效果有一摺摺的層次感覺，給人以貴族、浪漫的感覺。
1. Sola 35 and 45 pipe diameter tubular motors are generally adopted as the driving force. According to the height of building
Windows, electric curtains of different pipe diameters are adopted, and various types of fabrics are used to achieve different
sunshade effects;
2. The system can be made into one bracket two (horizontal line) and one bracket two (90-180 degree Angle);
3. The control mode can be controlled by wireless remote control, manual switch, intelligent home control, etc.;
4. The use effect of the overall curtain has a folded layer feeling, giving people a sense of nobility and romance.
